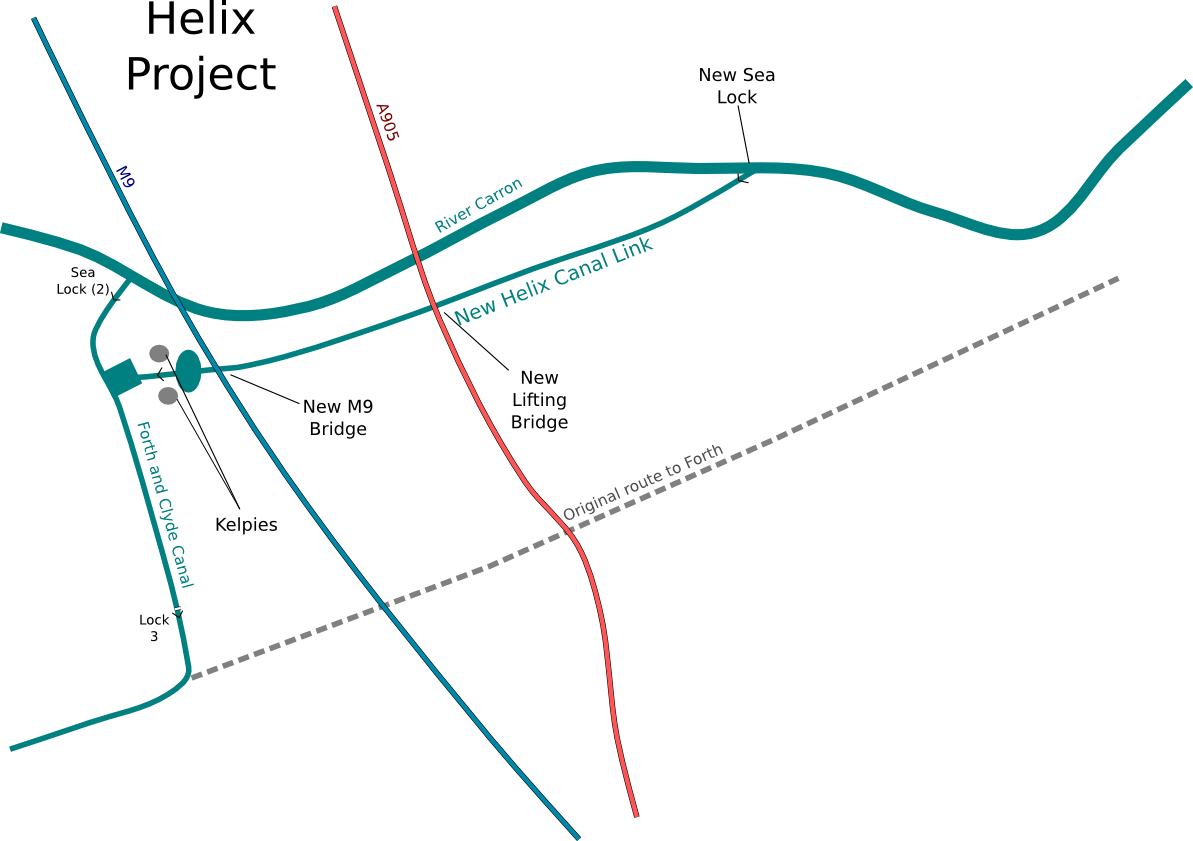

Map of the Helix Project canal link
Map derived from data (c) OpenStreetMap
Helix Project Canal Link

Funded with lottery money, the Helix Project involved the regeneration of a large area between Falkirk and Grangemouth, creating a welcoming green space with networks of paths, wildlife reserves, wetlands, outdoor sculptures and a watersports lagoon. It has also made major improvements to the Grangemouth end of the Forth and Clyde Canal.

The Kelpies with new lock between them and basin in front

After the canal closed in the 1960s, more than a mile of the eastern end of the channel (from the old sea lock at Grangemouth up to lock 3 at Orchardhall) was filled in. A warehouse and several roads including the M9 motorway were then built on top, making restoration of the canal's original line very difficult. So when the canal was reopened for the Millennium, an old branch that led directly to the River Carron upstream of the M9 was restored instead.

New Carron sea lock below pipe crossing

But this was far from ideal - the tidal nature of the river and the restricted clearance under the various bridges meant that entering the canal's sea lock could be dangerous and should only be attempted at certain times. The Helix project has created a new section of canal that joins the Carron further downstream, alleviating these problems. The new cut diverges from the old just above the 2001-built Carron Sea Lock. A new lock lowers it slightly to a round basin, flanked by enormous 30 metre high Kelpie sculptures (like silver horse's heads), visible for miles around. Across the basin, the new canal tunnels underneath the M9 motorway and runs parallel to the River Carron for roughly a kilometre, before joining the river at a new sealock, downstream of the problematic section of the river. Another interesting feature on this section is a brand new single-leaf lifting bridge carrying the A905 road across the canal just south of Kerse Bridge.

New lifting bridge for A905 at Grangemouth

See below for photographs of the Helix work at various stages of its construction, which took place from 2012 until 2014.

Progress on 2nd January 2014

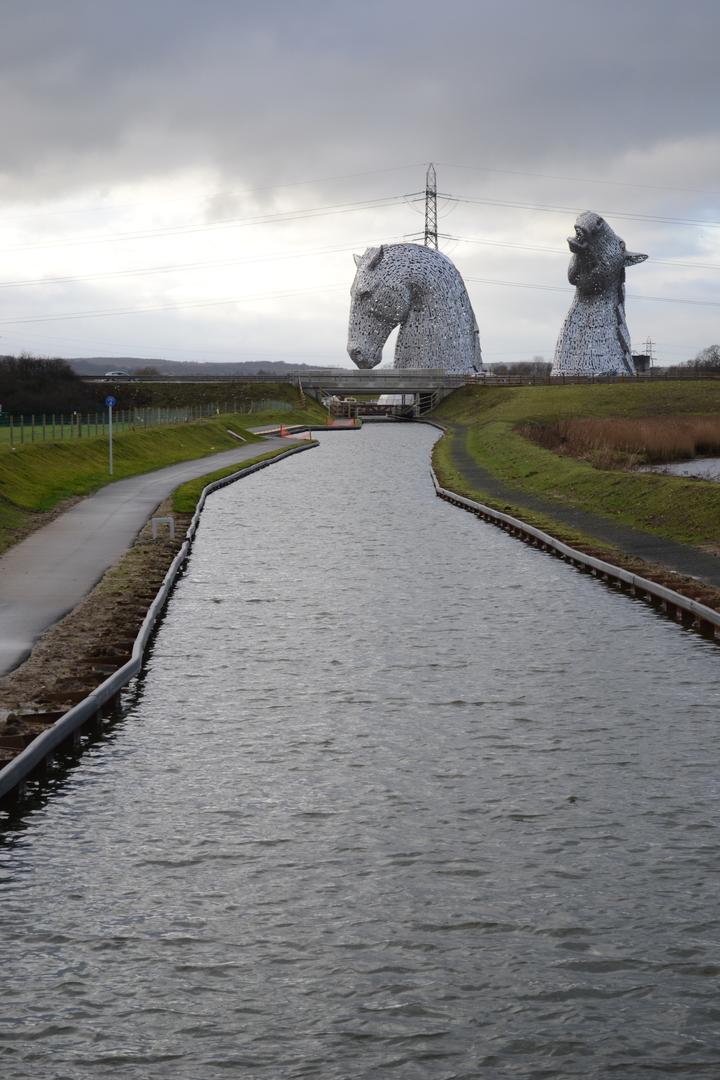

New canal and Kelpies from A905

The new canal link and the Kelpies are both looking close to completion! The canal channel is now in water, and the Kelpies tower impressively high above the new M9 bridge.

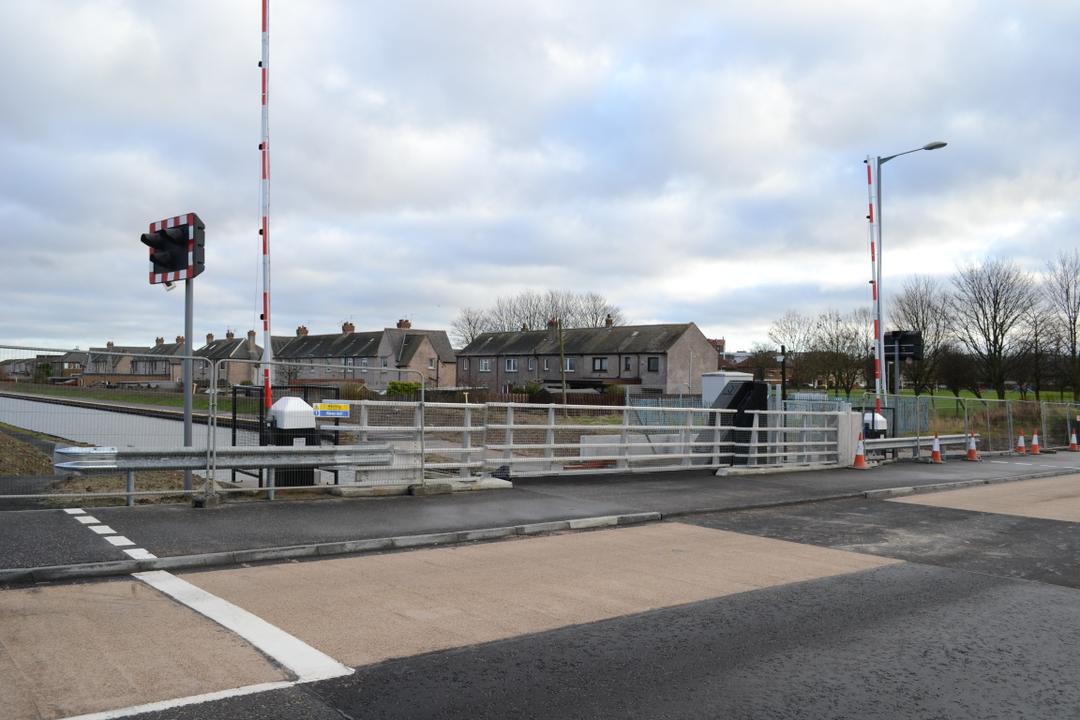

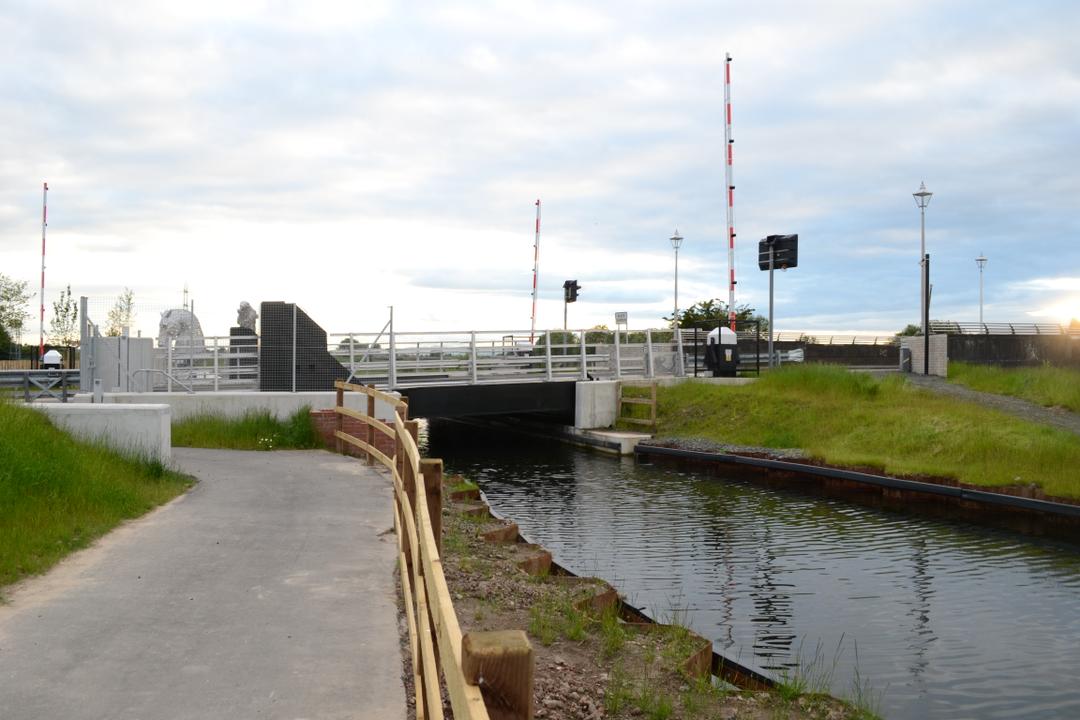

New lifting bridge for A905 at Grangemouth

A new single leaf lifting bridge now carries the A905 road across the new section of canal.

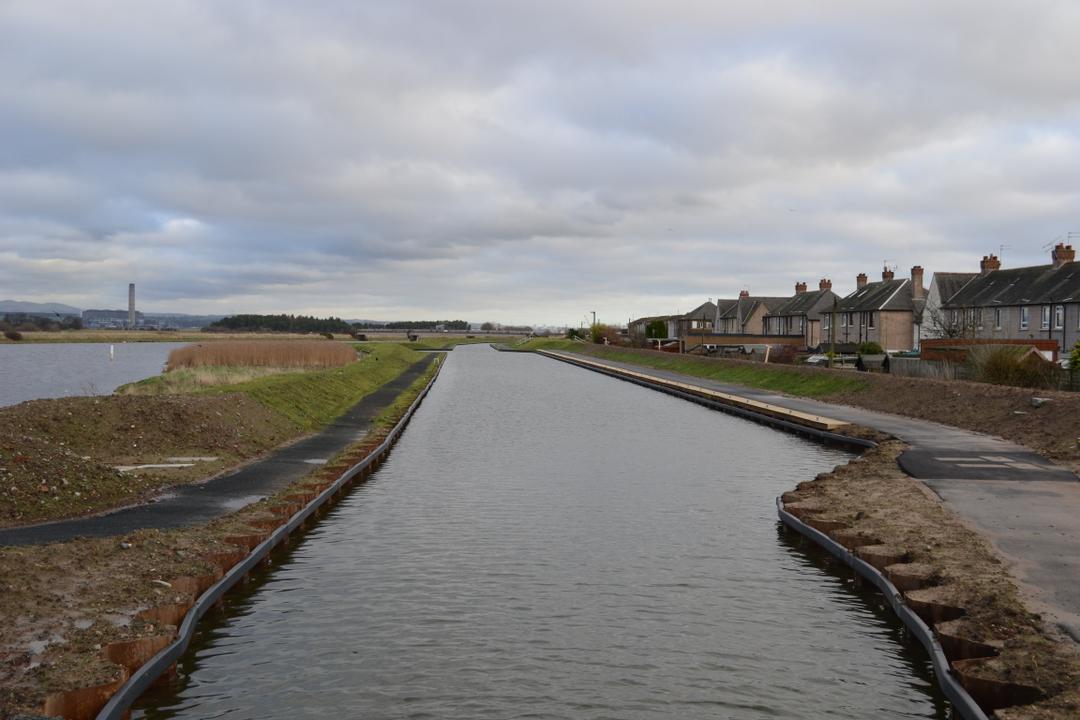

Looking down new canal from A905 towards sea lock

To the east, the new channel heads down the bank of the River Carron to the new sealock.

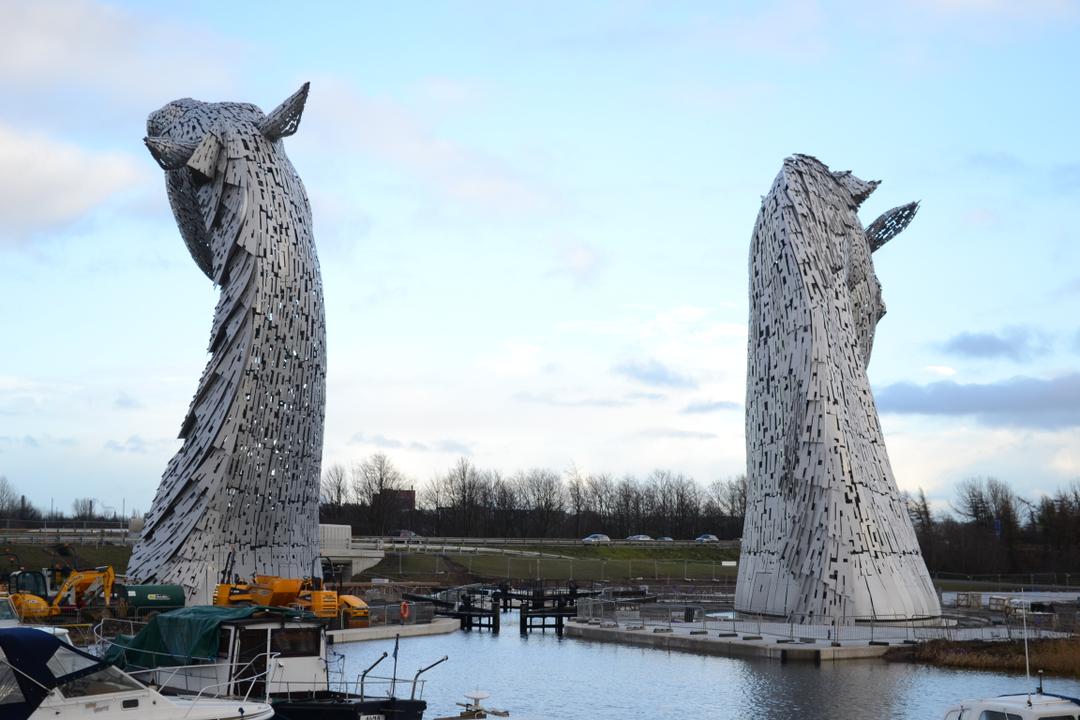

Kelpies and new lock from current canal terminus

Next to the current terminal basin, the new canal has been connected to the existing basin by way of a new lock right in between the massive Kelpies. Large sections of the area are still fenced off for construction work, but it appears to be mainly just landscaping that's still to be done now.

Progress on 10th August 2013

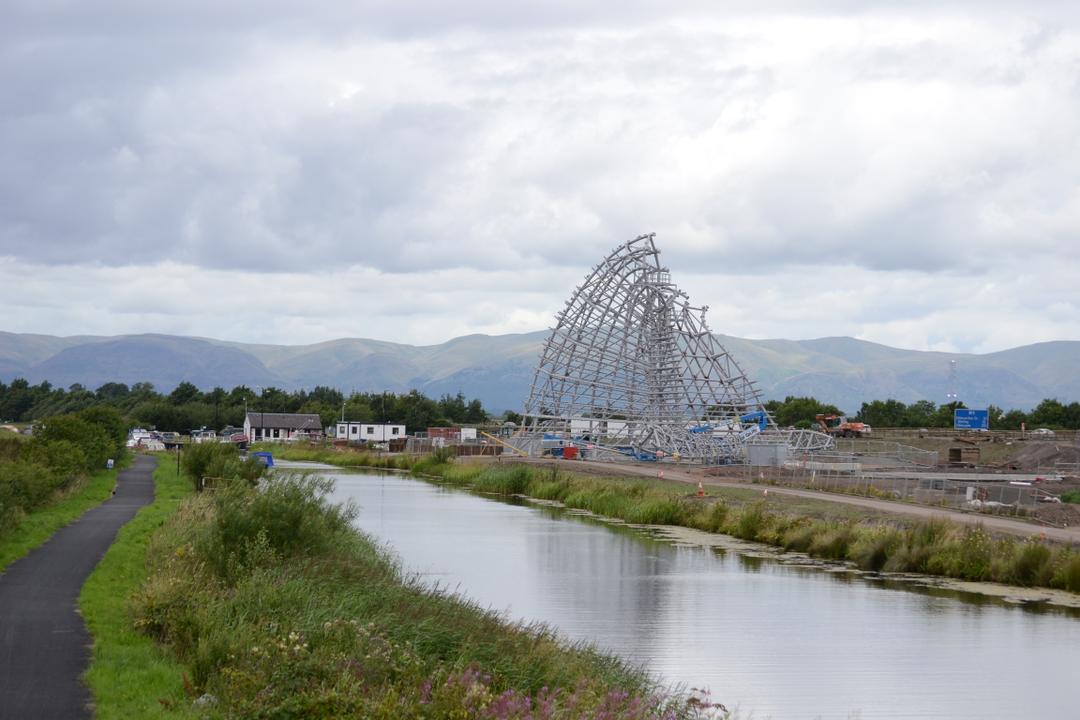

Kelpies under construction at Grangemouth

The Kelpies are now under construction! They aren't identifiably horse-shaped yet, but they're already impressively huge, dwarfing the buildings around the canal basin. The rest of the site looked much as it did in April, but no doubt progress is being made.

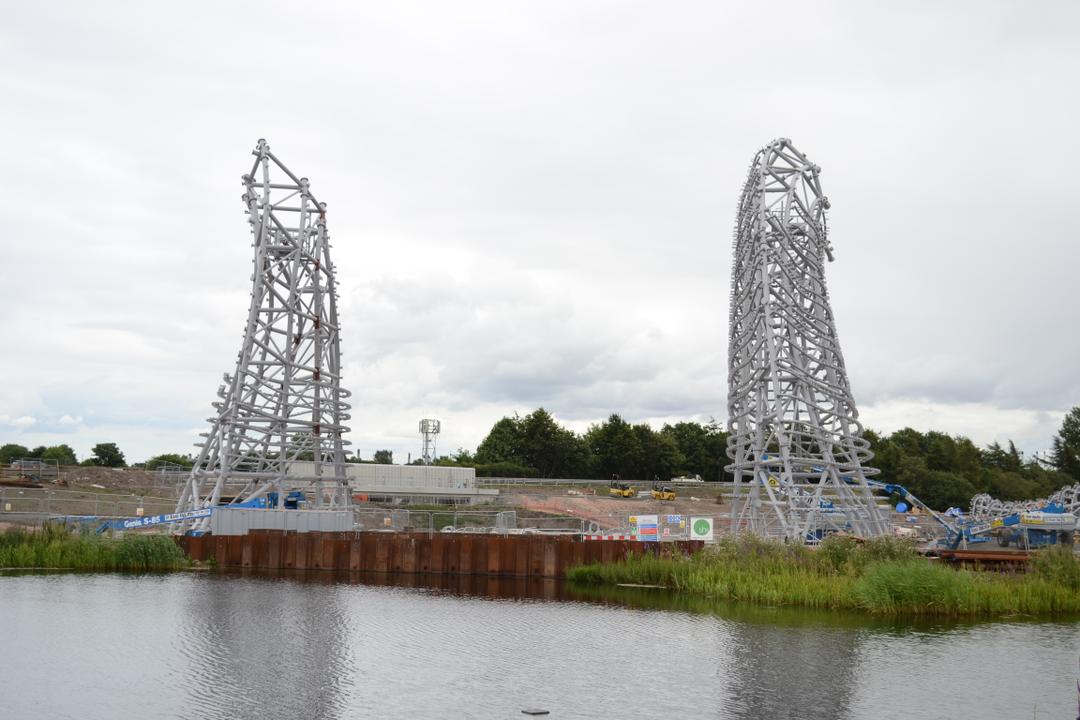

Kelpies under construction at Grangemouth

Progress on 14th April 2013

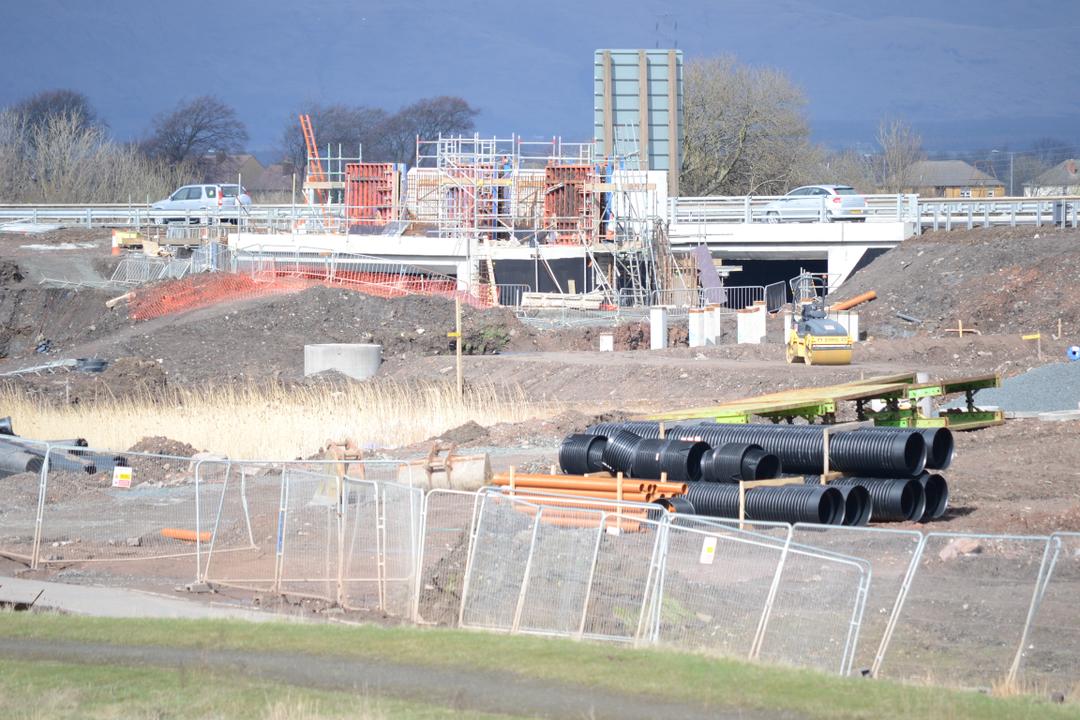

New M9 bridge (completed) and access road bridge (under construction) at Grangemouth

In front of the now-completed M9 bridge, another bridge is under construction, presumably for a path or an access road.

Small Kelpie sculptures on a lorry at Grangemouth

Small versions of the Kelpies on the back of a lorry at the basin. The final ones will be ten or fifteen times bigger!

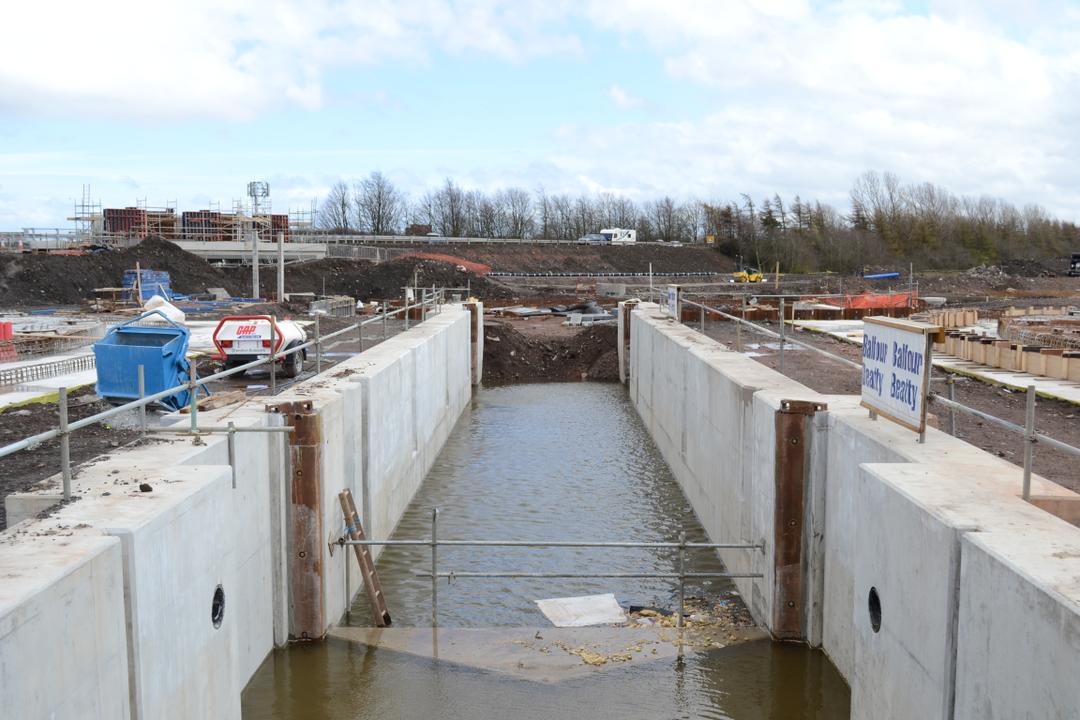

New lock under construction at Grangemouth

The new lock on the east side of the basin is taking shape nicely.

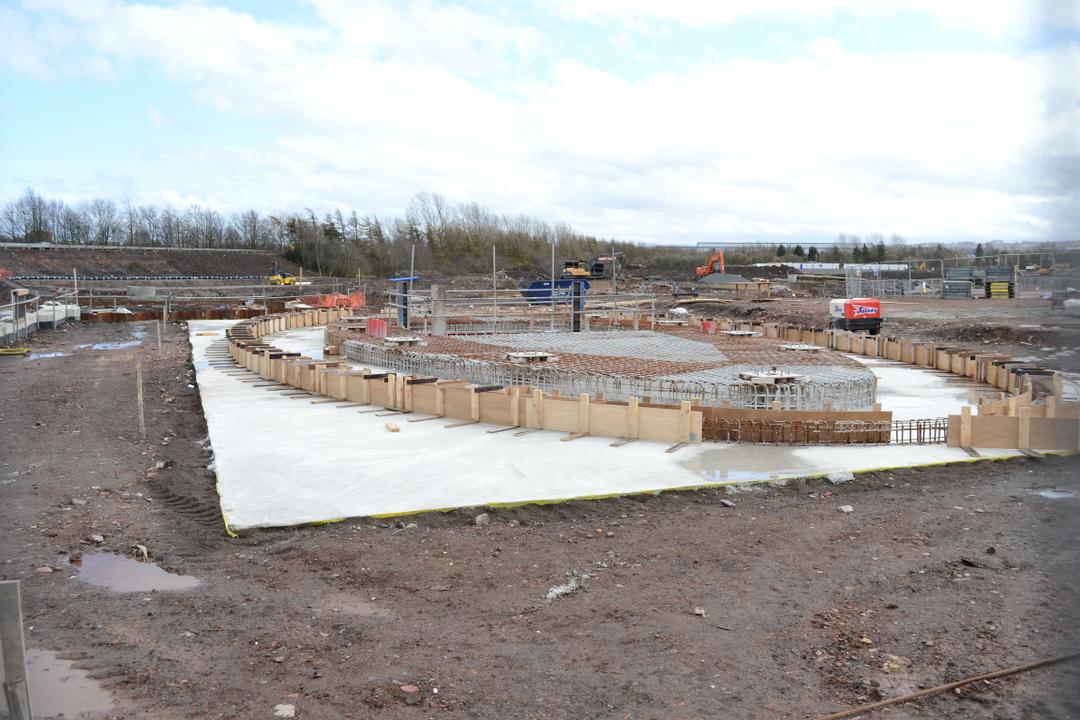

Base under construction for one of the Kelpies

These oval shaped constructions either side of the new lock will form the bases for the huge Kelpie sculptures.

Progress on 6th April 2013

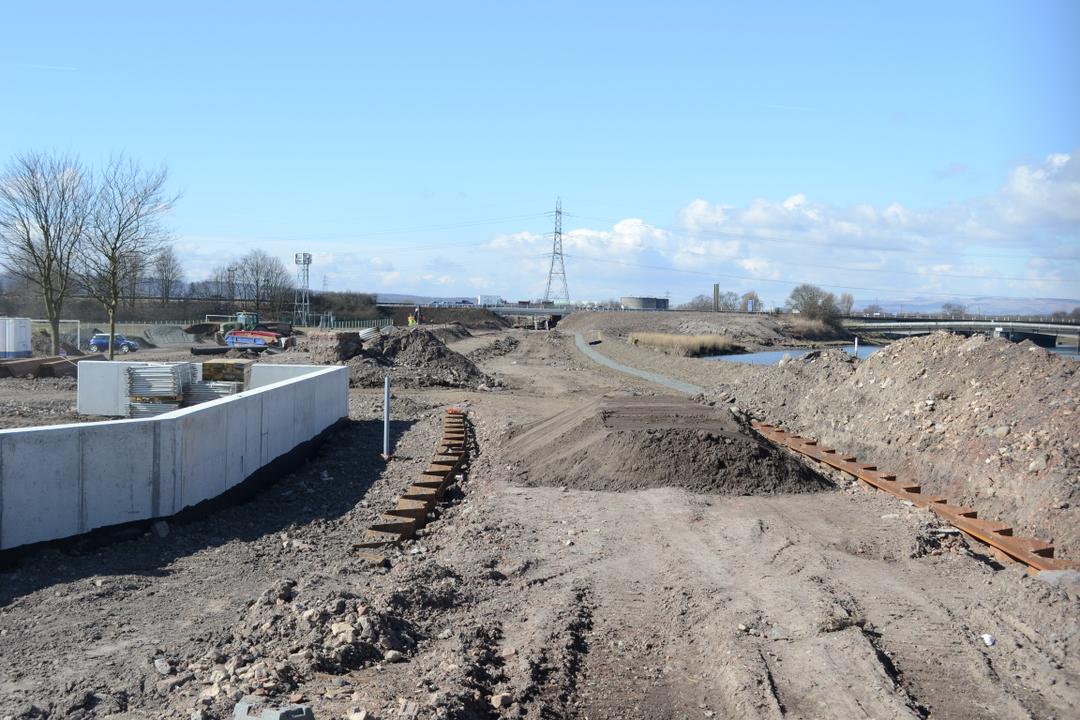

New canal channel under construction for Helix Project

Looking from the A905 to the new M9 bridge. The bridge structure is now complete and traffic restrictions have been lifted. The concrete on the left may become part of the A905 lifting bridge.

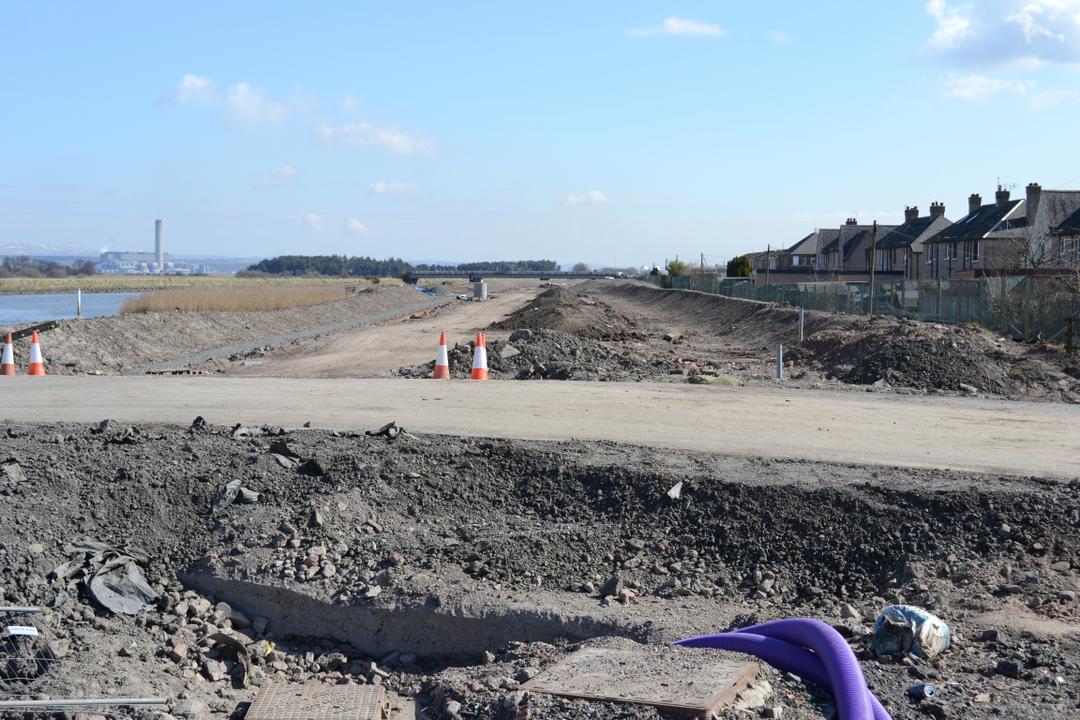

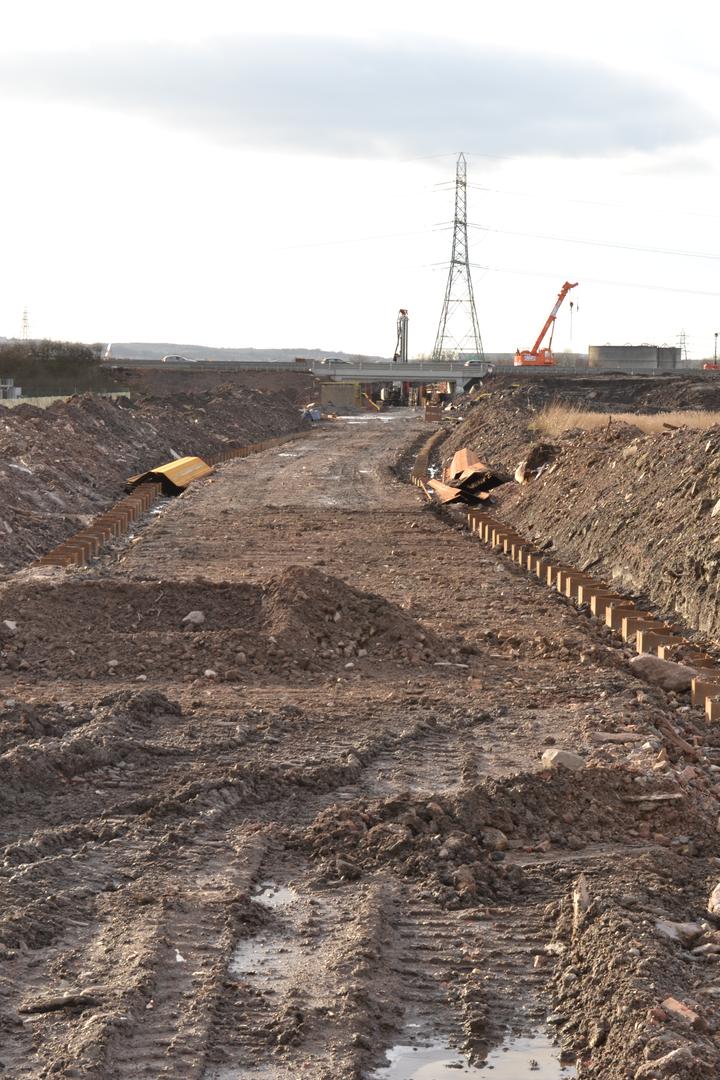

New canal channel under construction for Helix Project

Looking downstream from the same spot. The shape of the new canal channel can now be made out.

Progress on 2nd February 2013

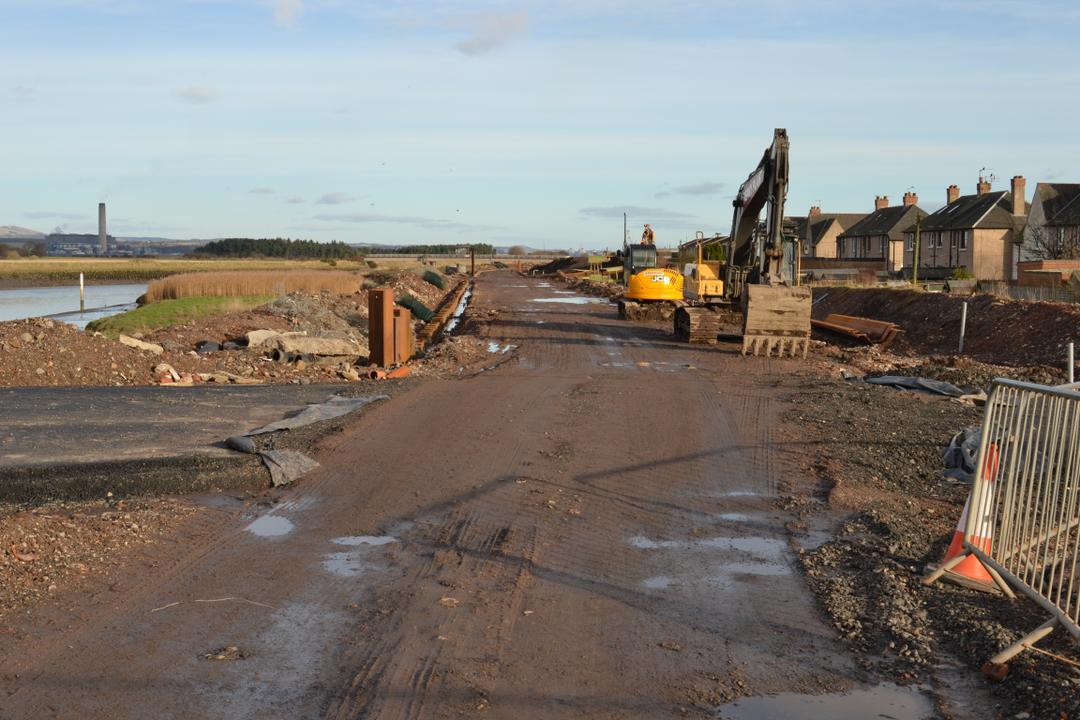

Helix work at Grangemouth

Looking down the line of the new canal from A905. The ground has been cleared and levelled.

Helix work at Grangemouth

Looking from A905 towards the motorway. The channel is taking shape and the concrete deck of the M9 bridge can be seen.

Progress on 5th November 2012

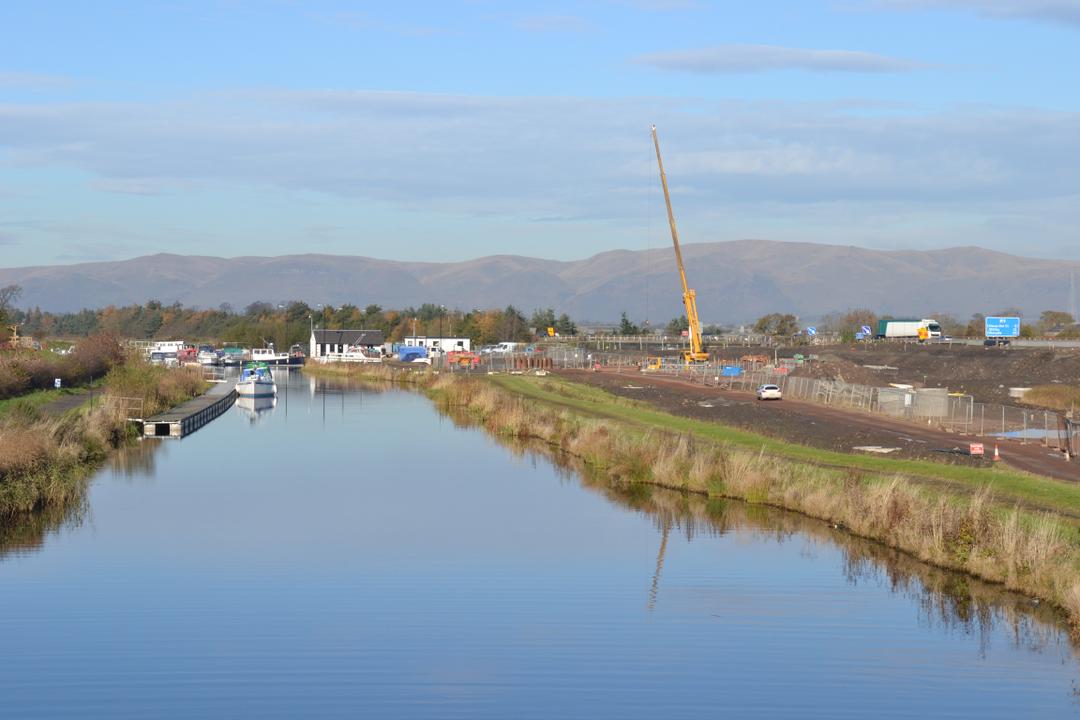

Forth and Clyde Eastern terminus and Helix work

Looking down the canal to the current terminus. On the right is where the new lock and the Kelpies will be built.

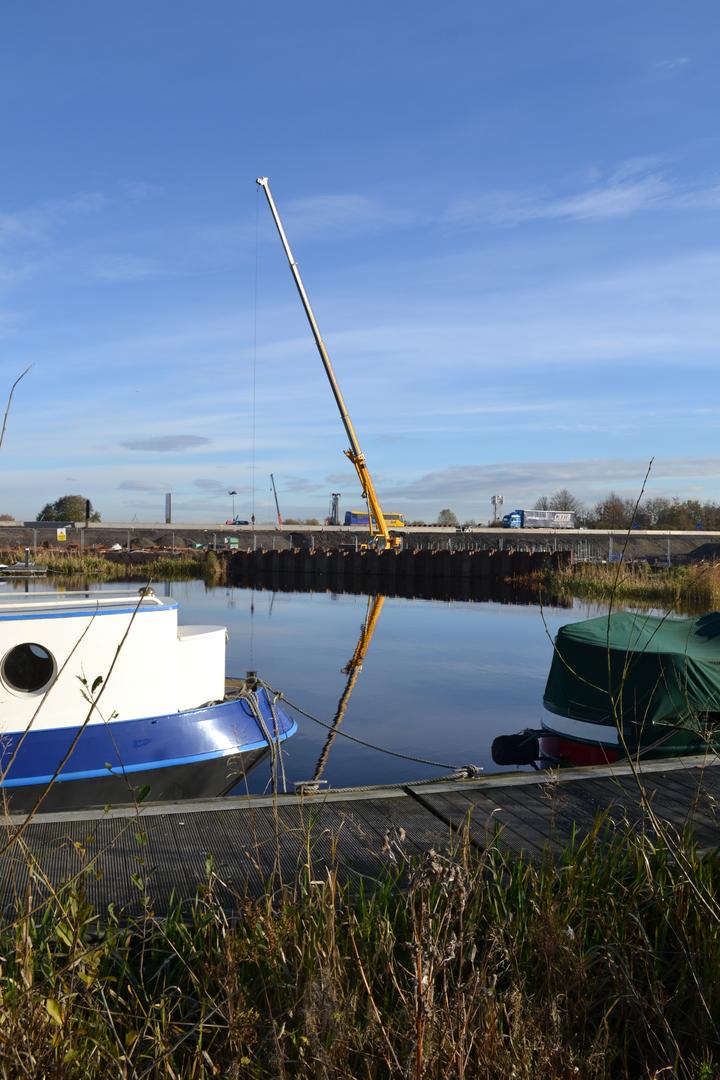

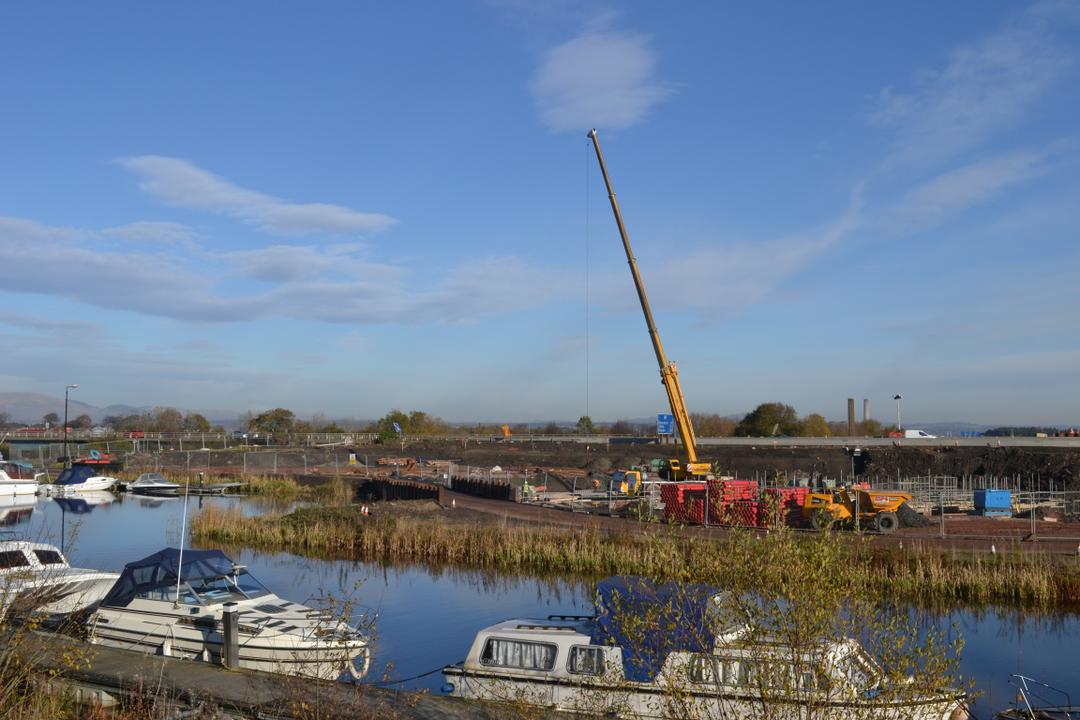

Helix work at Grangemouth

Sheet piling separates the canal basin from the construction site. In the background is the site of the new M9 bridge.

Helix work at Grangemouth

Looking across the working canal to where the new canal will branch off. The motorway bridge work is between the bus and the lorry.

Progress on 27th August 2012

New Grangemouth link under construction

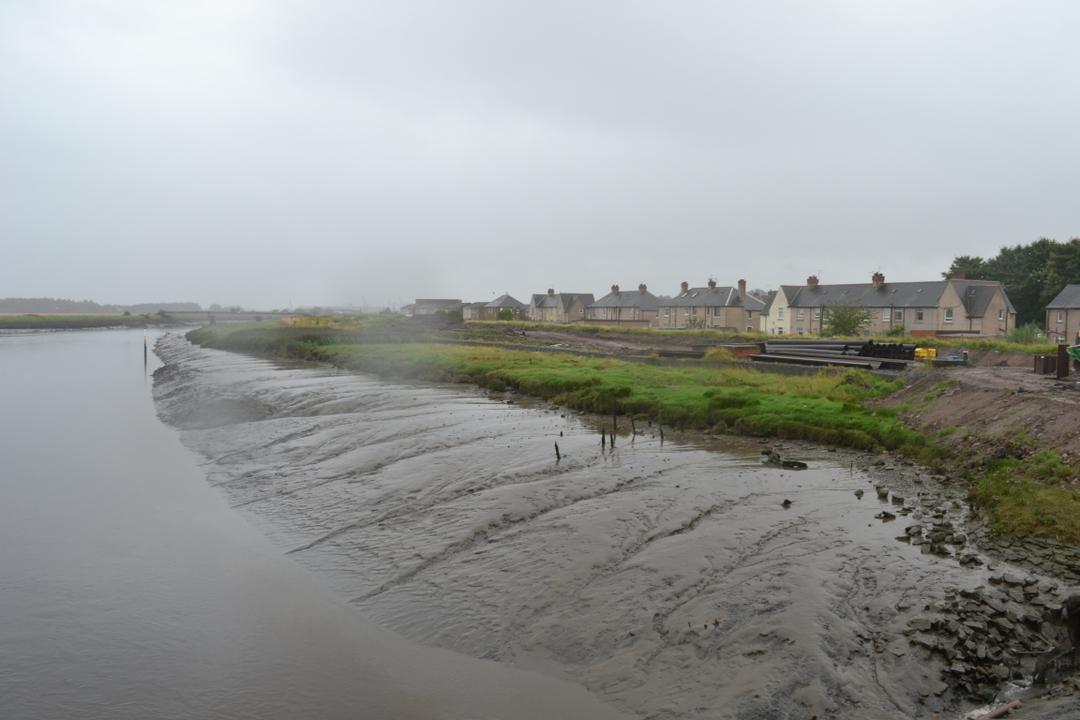

Looking down the Carron from the A905, towards the site of the new sealock.

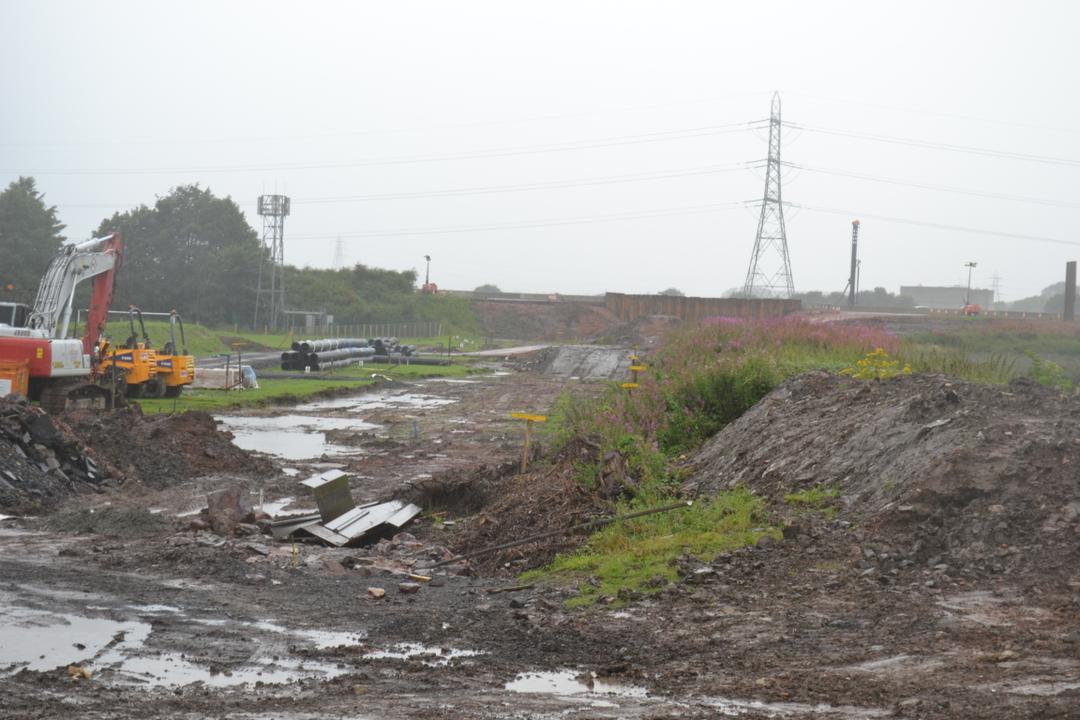

New Grangemouth link under construction

Looking the other way, towards the M9. Sheet piling can be seen where the new bridge is being constructed.
